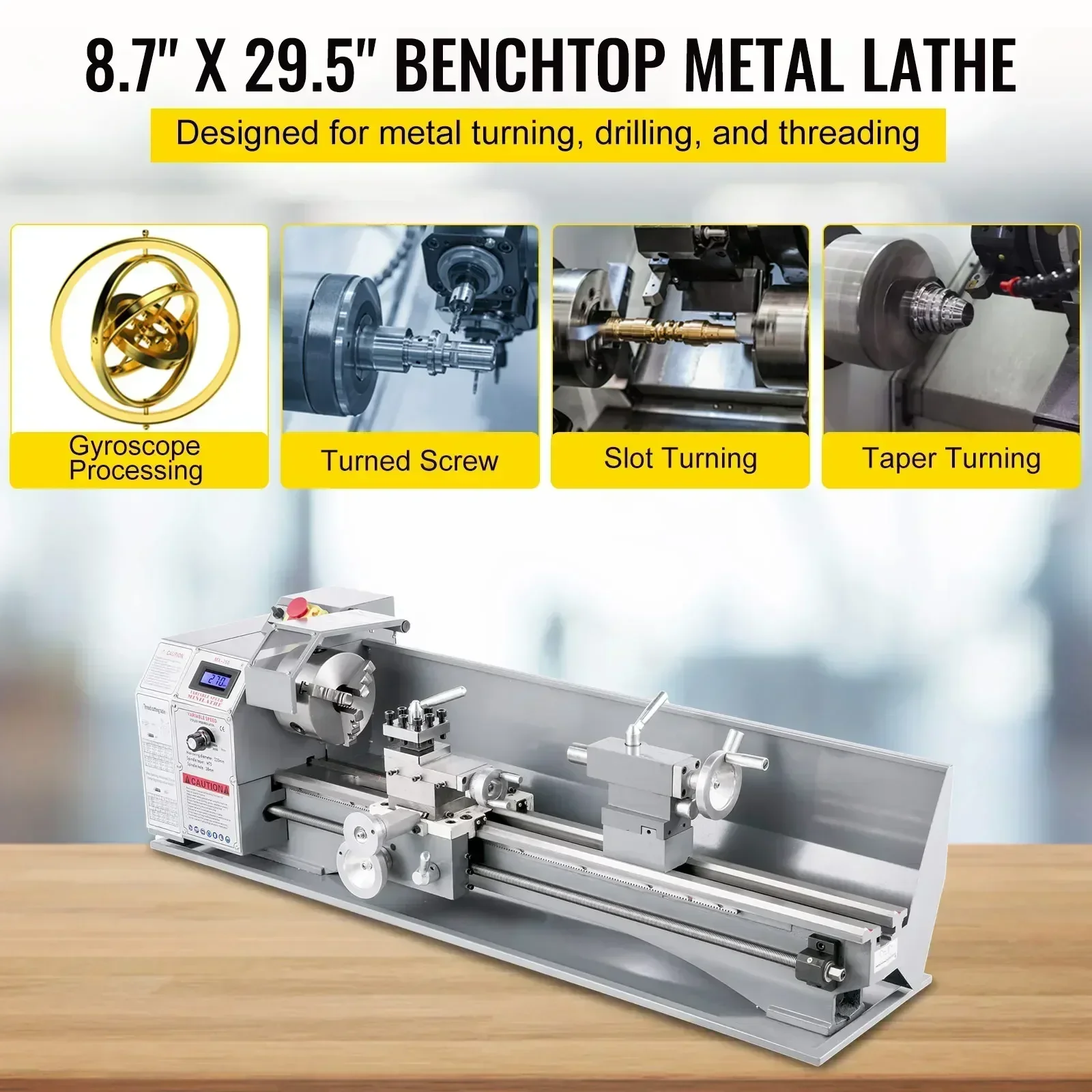

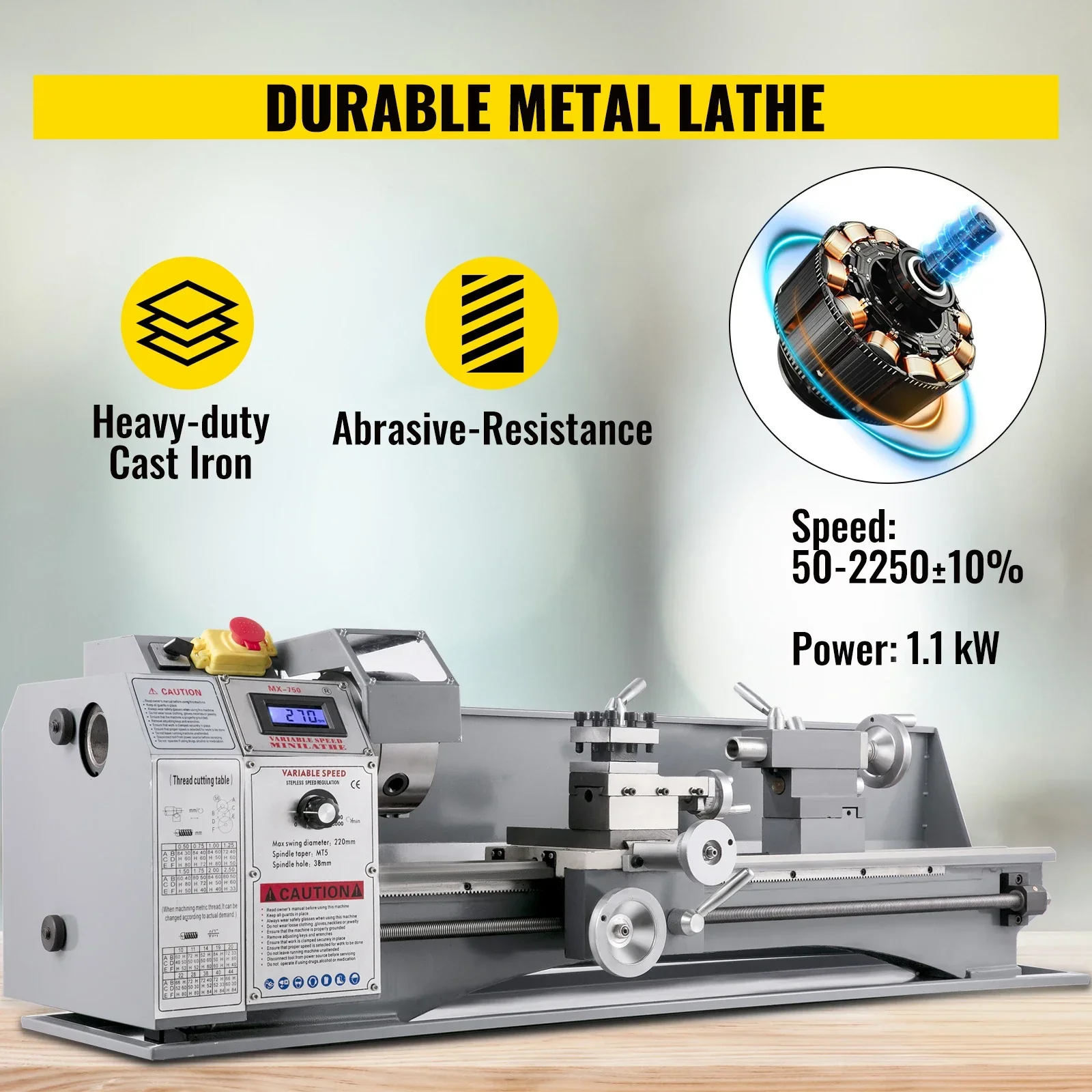

The 220 x 750 mm precision metal mini lathe features a 1100W motor, a 3-jaw chuck, an MT5 spindle taper, and an MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2250±10%Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
Variable Speed Design
750 mm Large Swing Range
Professional Compound Rest
Supportive & Protective
Accurate Tailstock
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Power: 1100W
Volt: 220V 50Hz
Phase: Single Phase

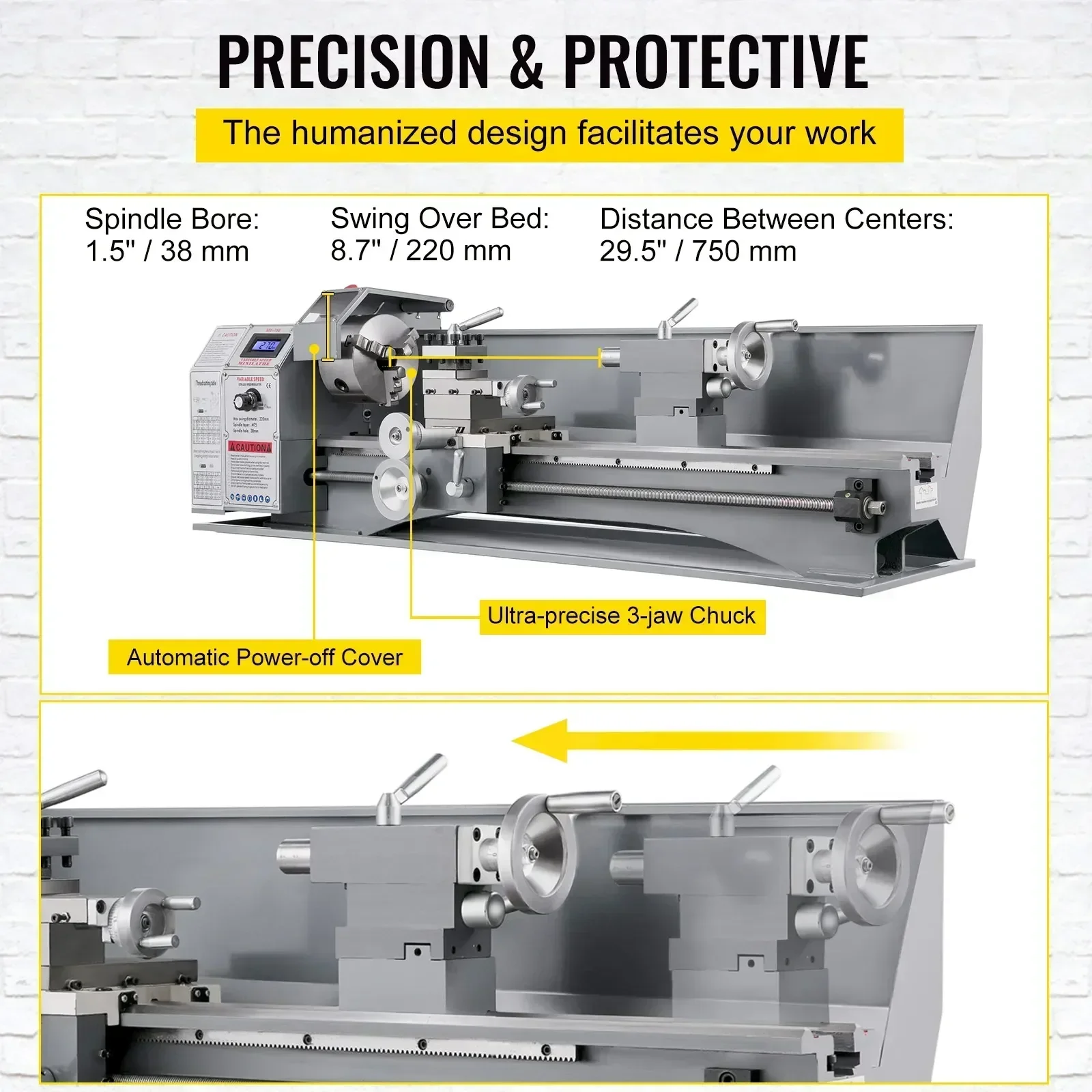

Swing Over Bed: 8.7″ / 220 mm
Distance Between Centers: 29.5″ / 750 mm
3-Jaw Chuck Diameter: 4.9″ / 125 mm
Hole Through Spindle: 1.5″ / 38 mm
Spindle Accuracy: 0.01 mm
Variable Speed(Rpm): 50-2250 RPM ±10%
Range of Imperial Threads: 8-44 T.P.I
Range of Longitudinal Feed: 0.02″ – 0.1″ / 0.5 – 3 mm

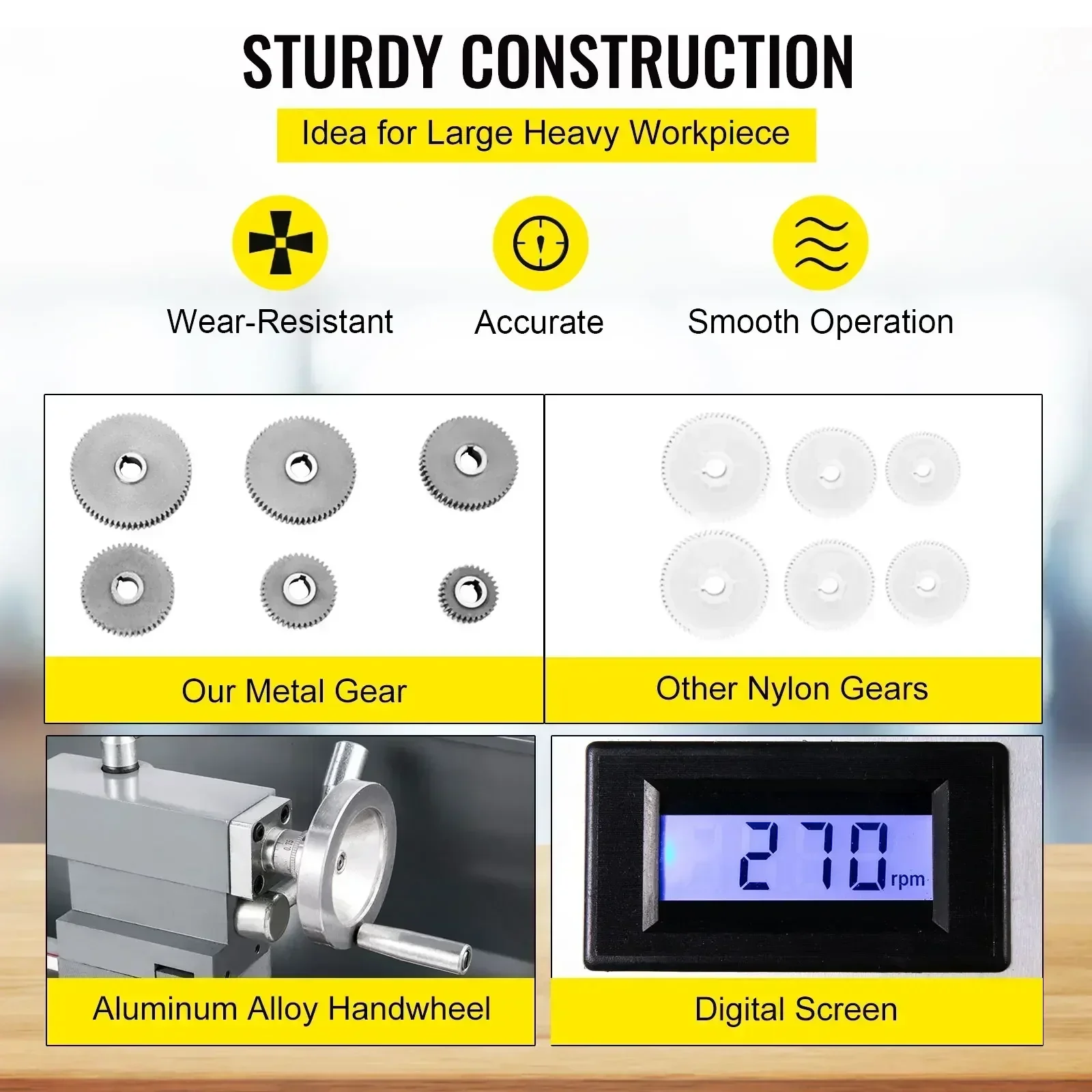

Gear Material: Metal
Item Weight:186 lbs / 84 kg

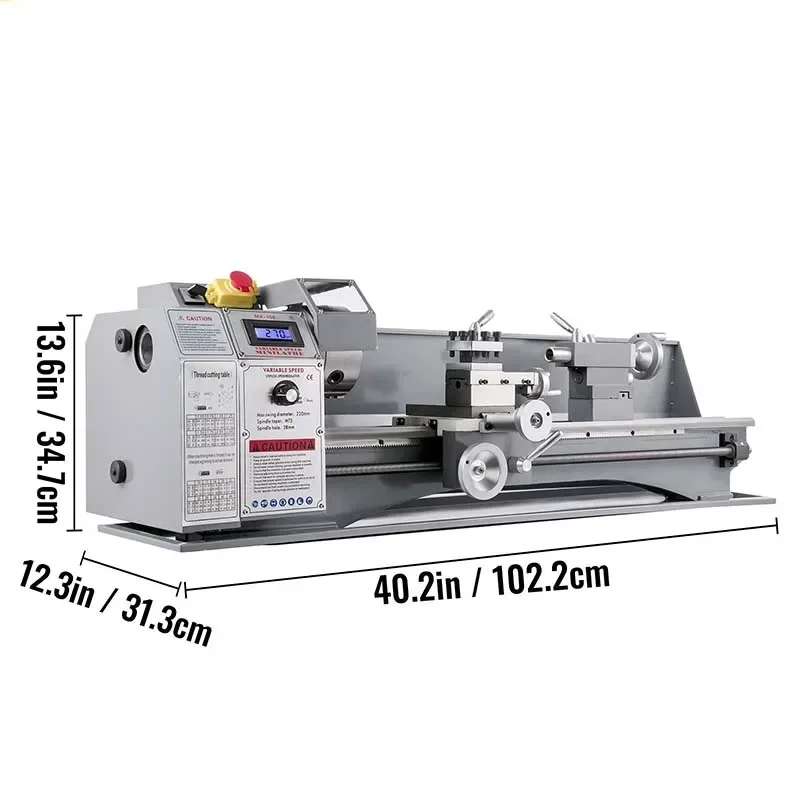

Item Dimension: 40.2″ × 12.3″ × 13.6″ / 102.2 × 31.3 × 34.7 cm

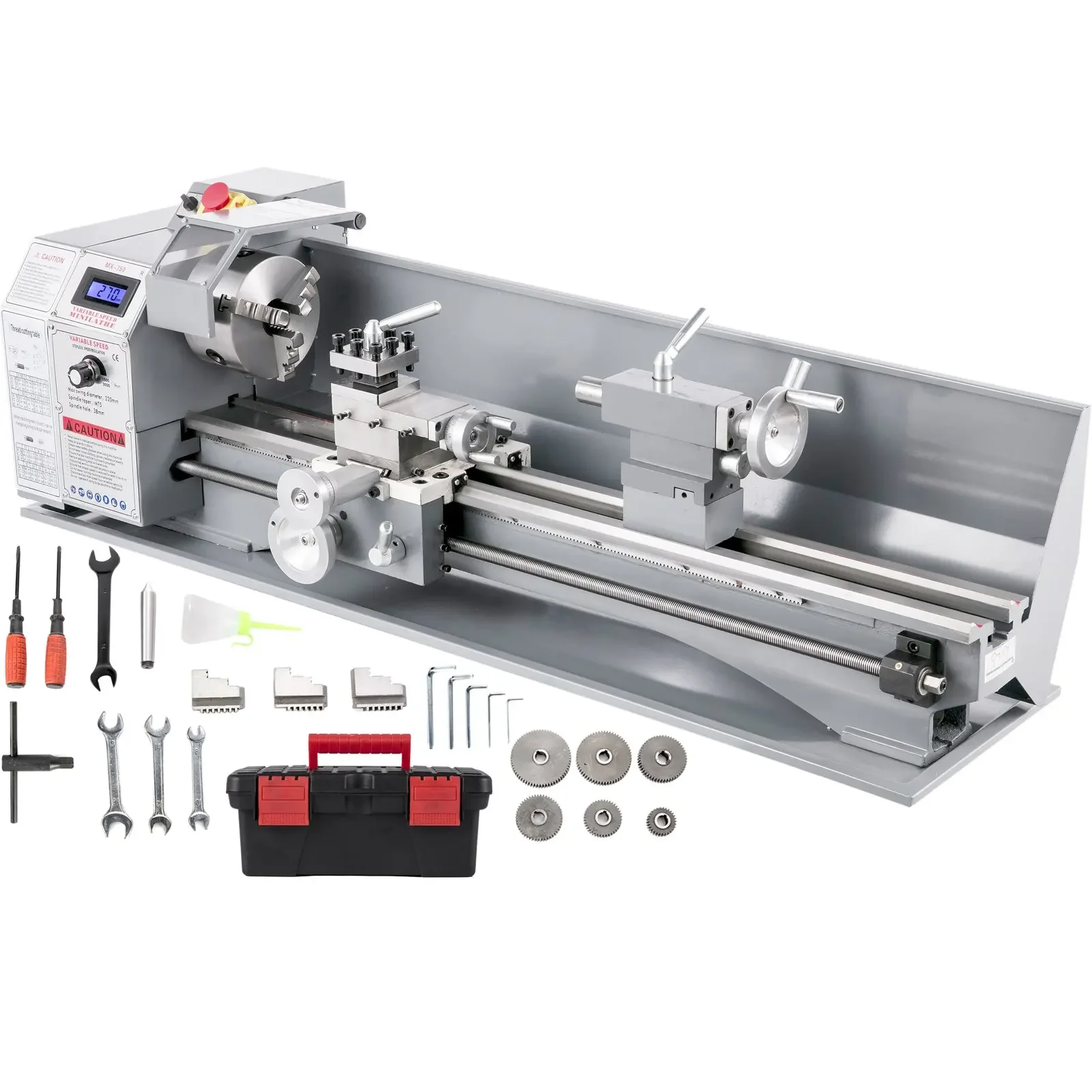

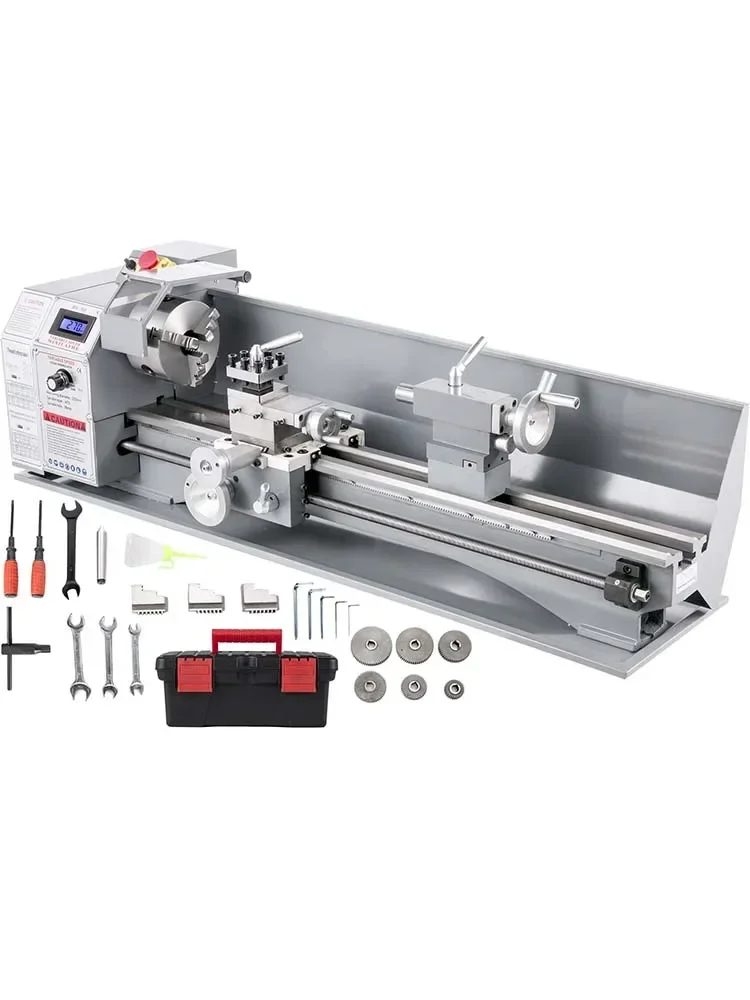

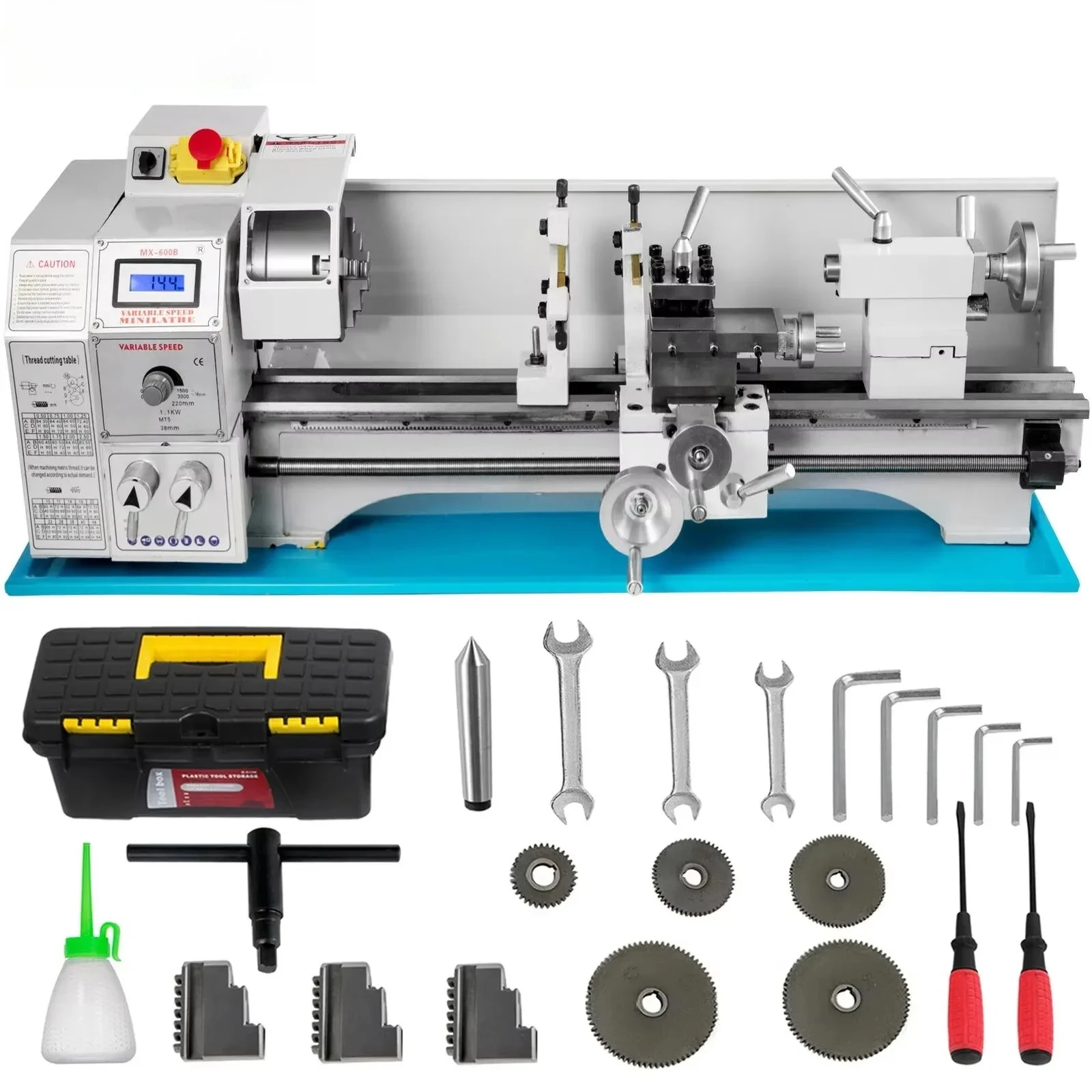

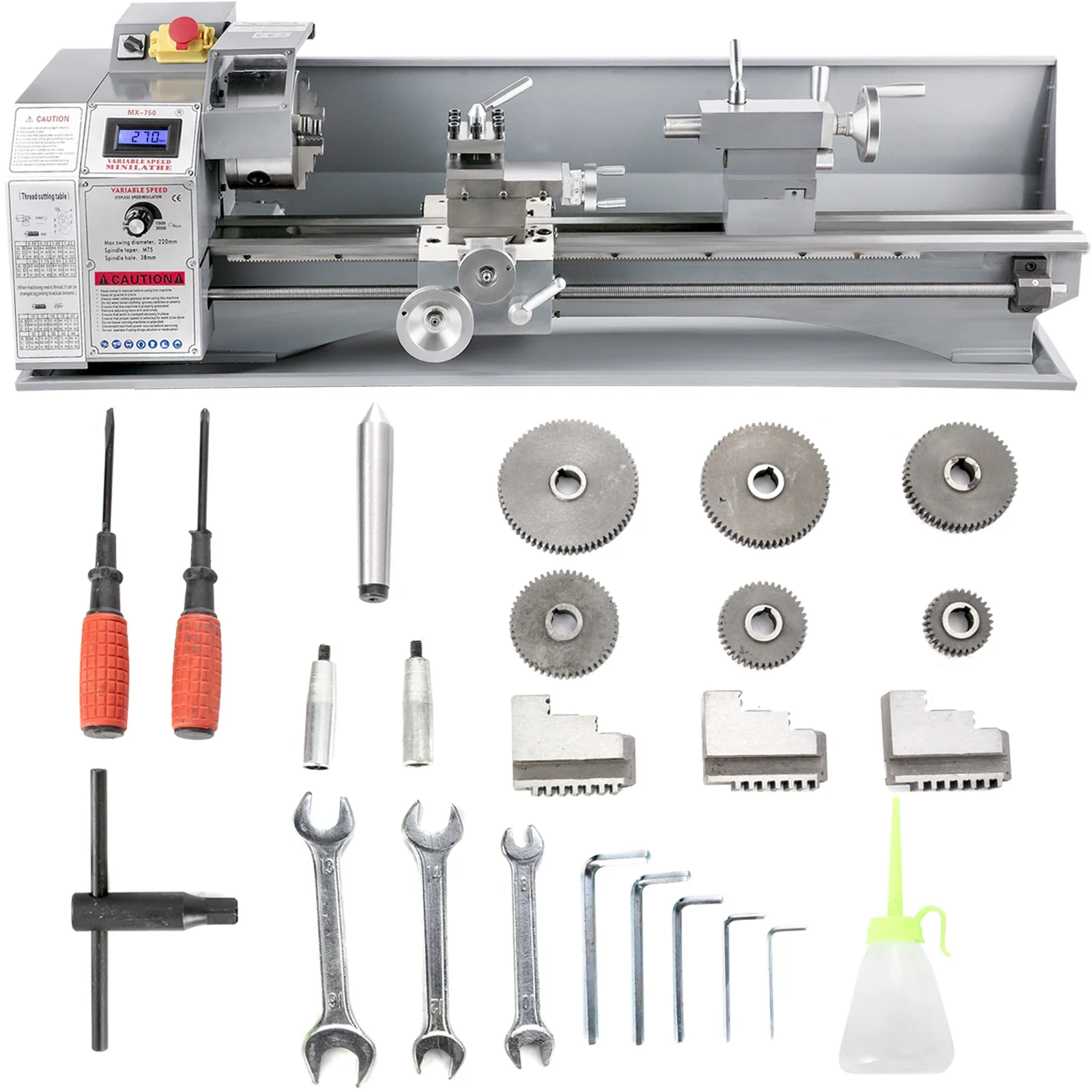

1 x Metal Lathe
1 x Centre Rest
1 x Dead Center MT2
1 x Oil Gun
3 x Jaws
6 x Metal Gears
1 x Instruction Manual
2 x Screwdrivers
1 x Accessory Kit
1 x Chuck Wrench
3 x Wrenches
3 x Chuck Jaws

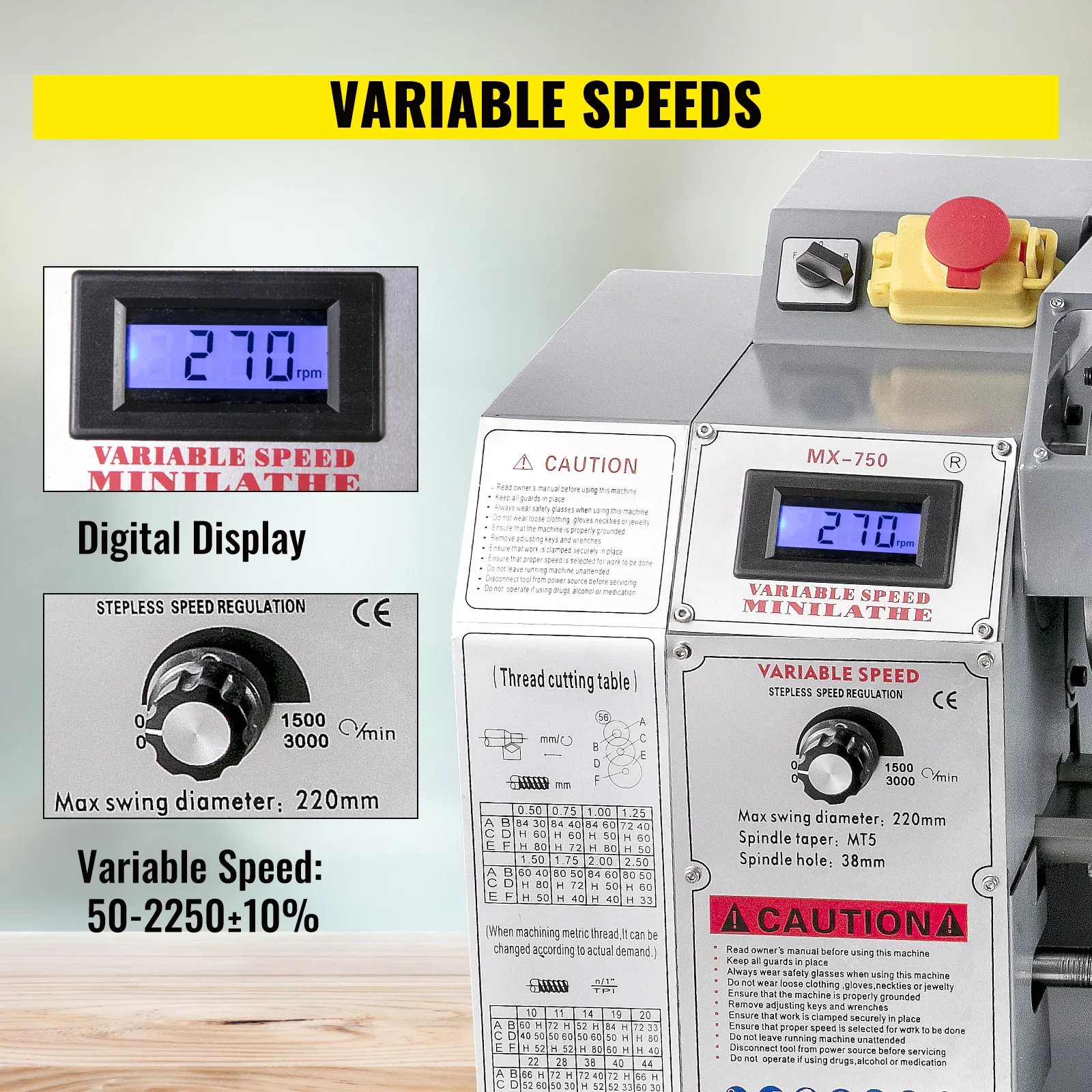

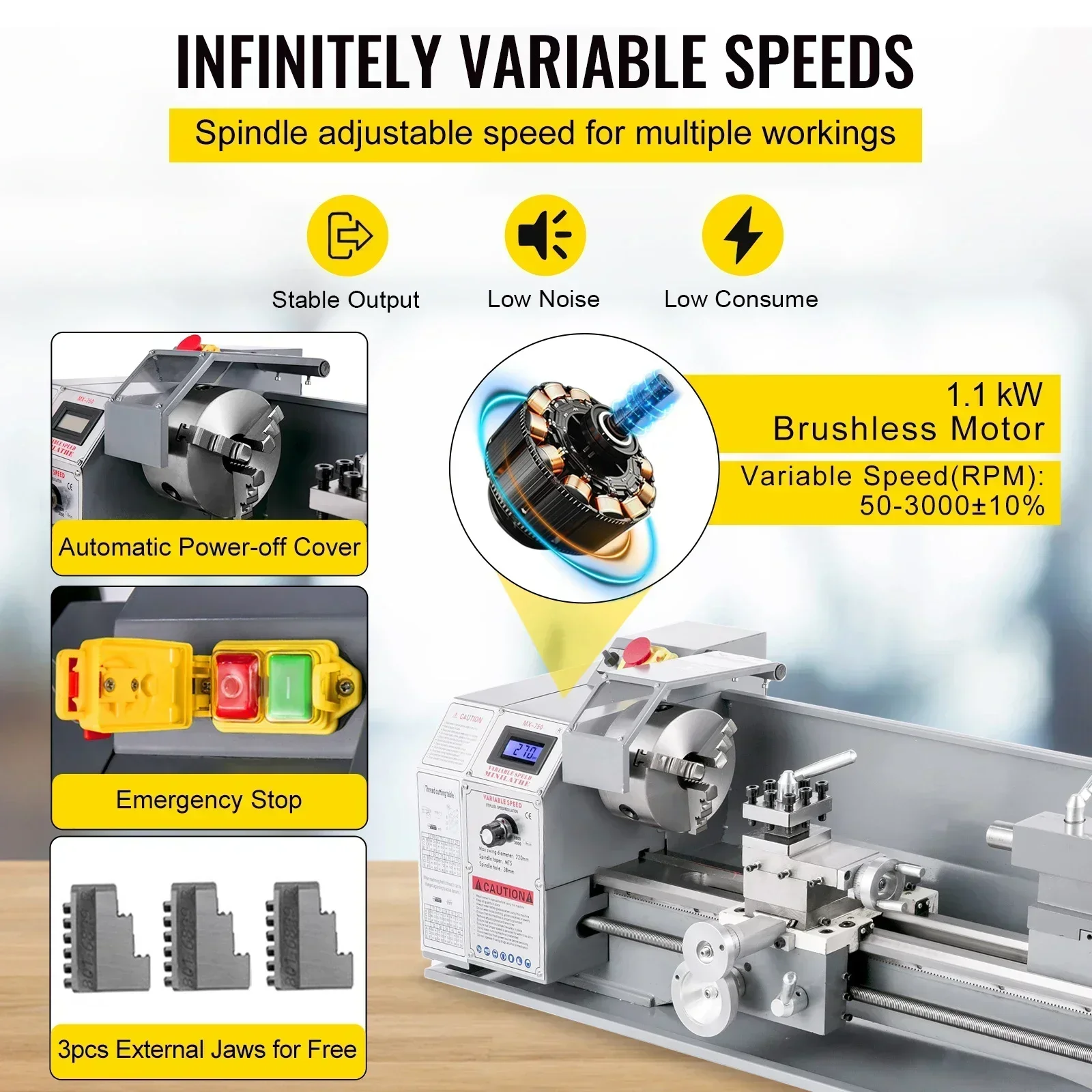

【Infinitely Variable Speed】: The mini metal lathe is driven by DC motor with Power: 750W. Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.
【750 mm Large Swing Range】: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9″/125 mm. Swing Over Bed: 8.7″/220 mm and Swing Over Cross Slide: 29.5″/750 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

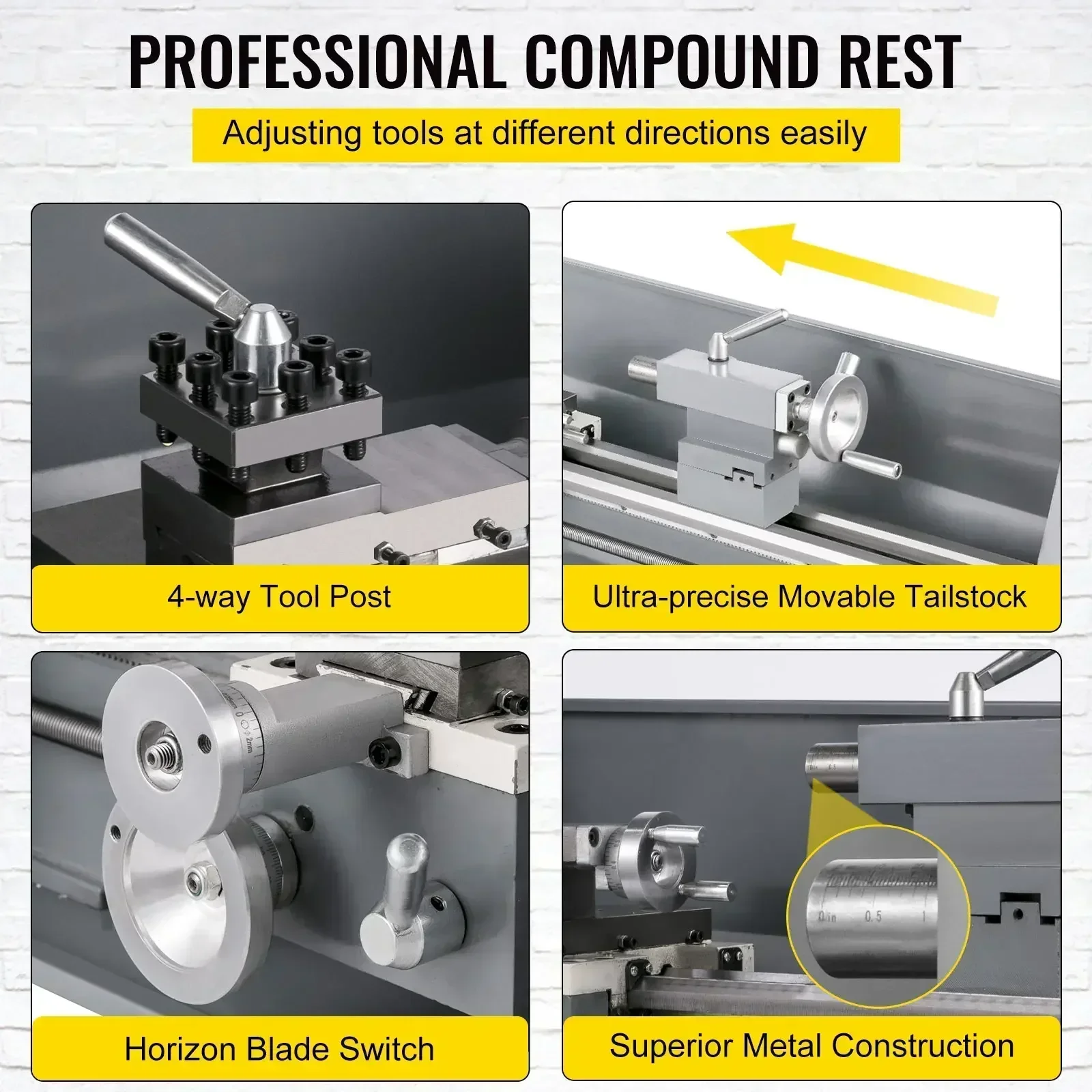

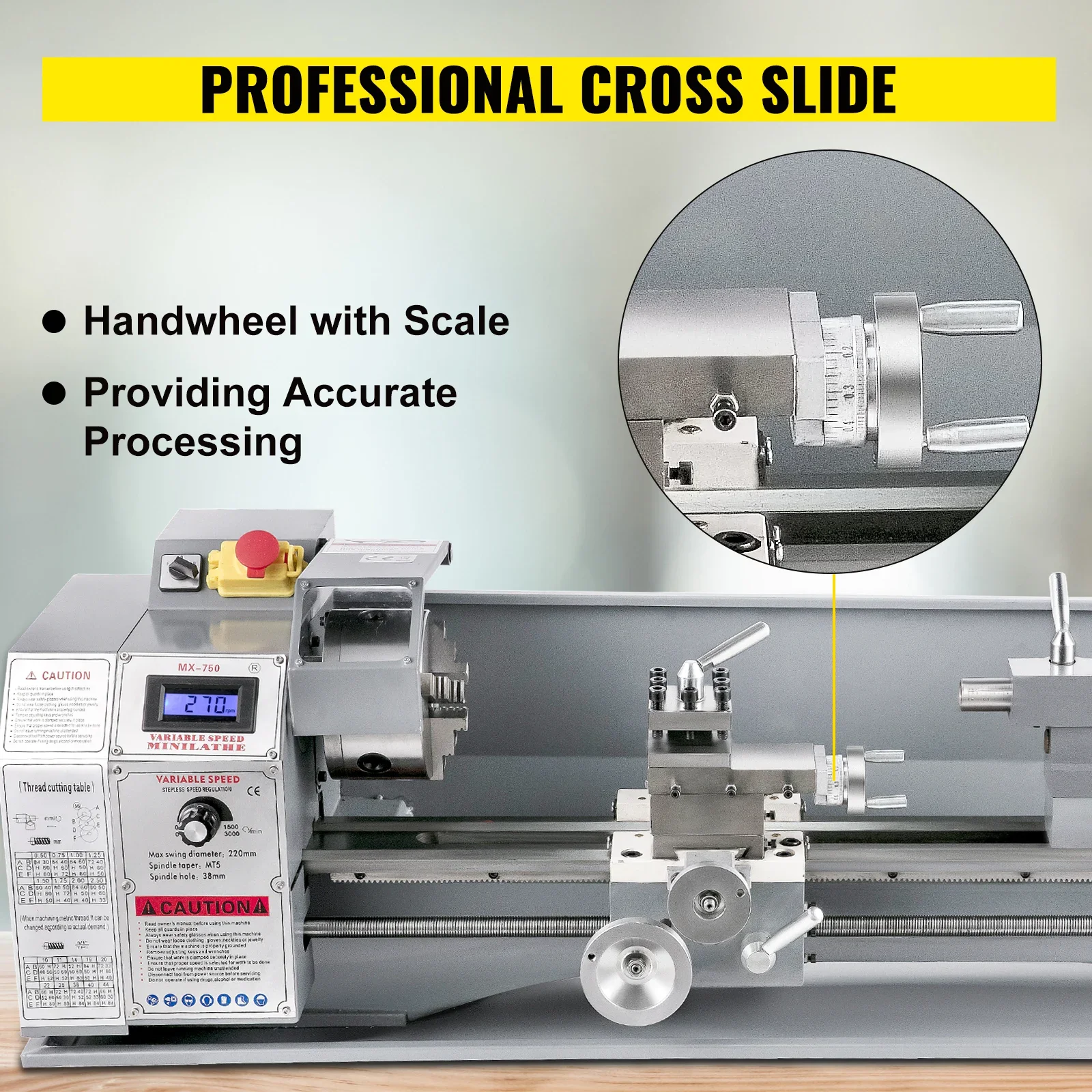

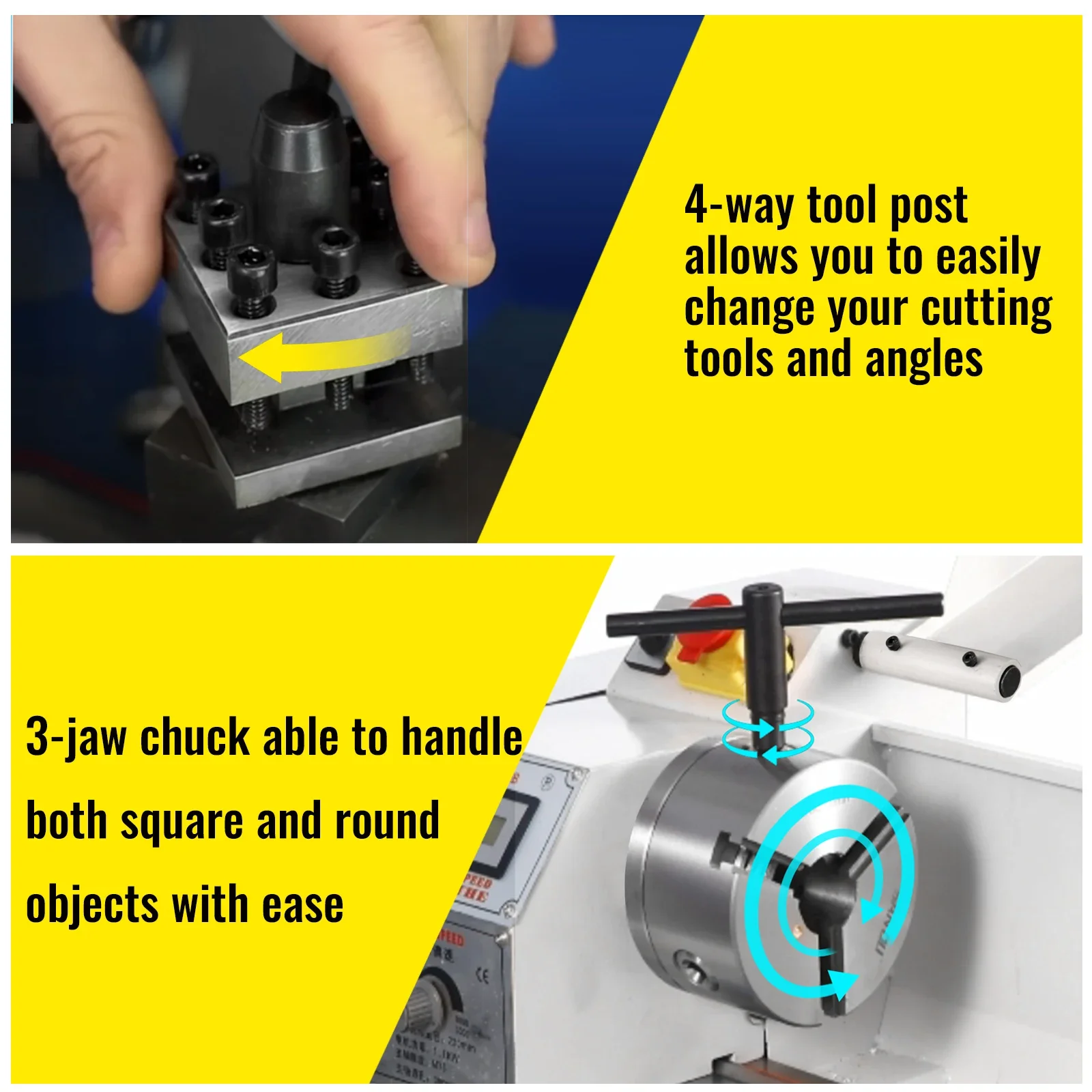

【Professional Compound Rest】: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw.
【Supportive & Protective】: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included.

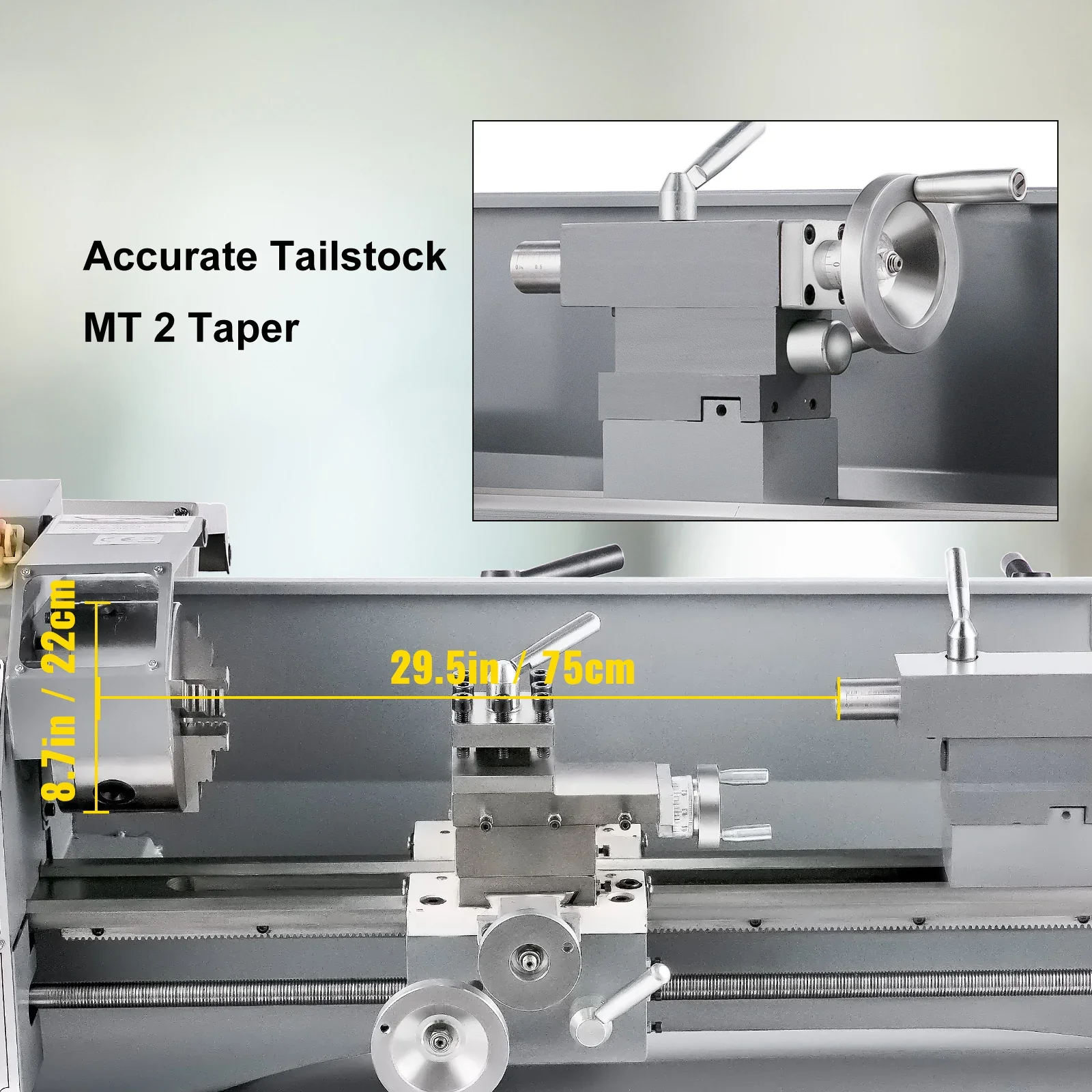

【Adjustable Tailstock】: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
